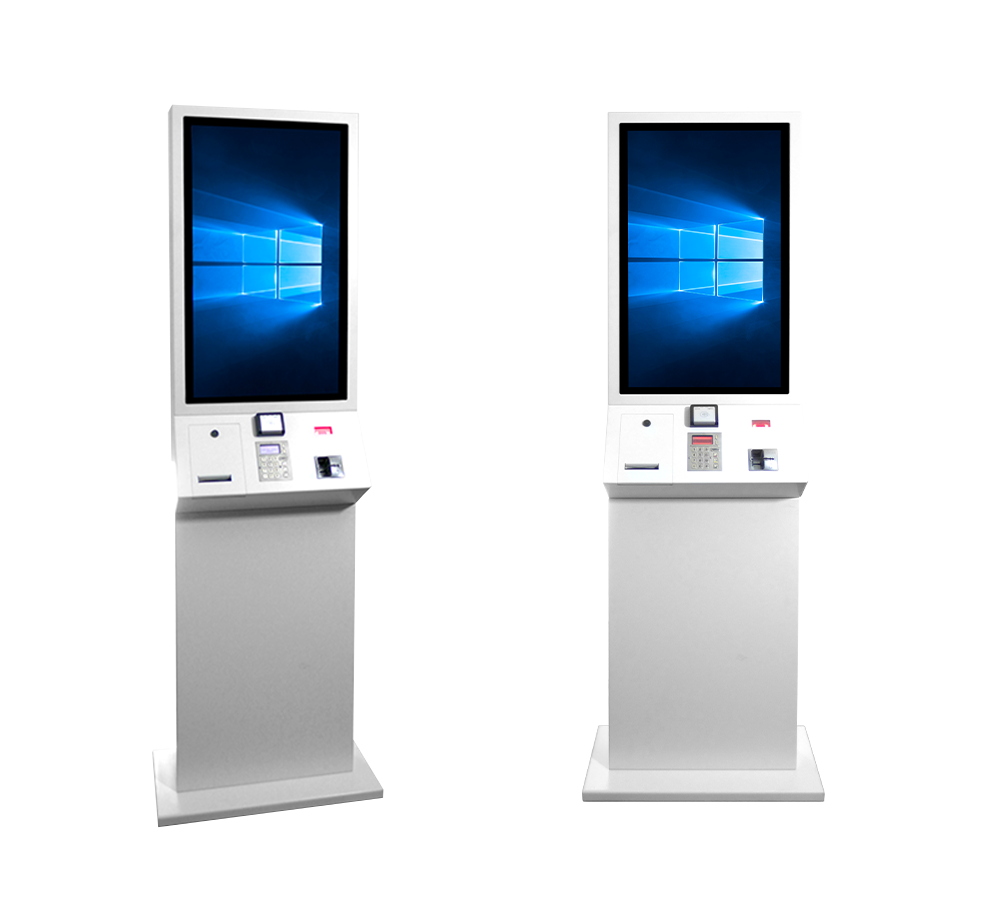

iCASH Touch Totem

Totem tactile de paiement digital pour boutique et restaurant ICASH

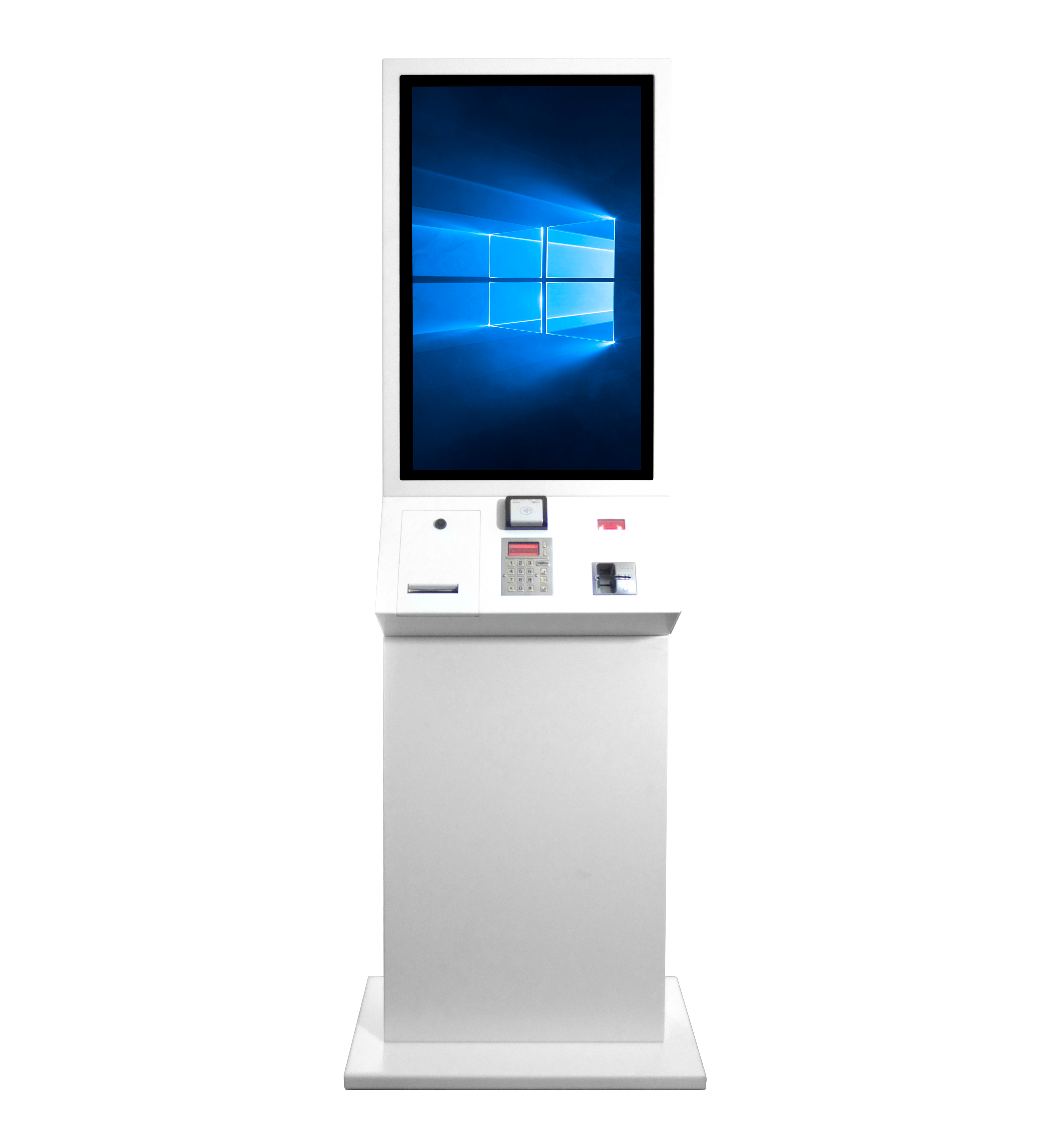

A 2-in-1 touchscreen payment totem!

This touchscreen totem integrates all the essential elements for self-service: an INGENICO card reader (IUR250), an INGENICO contactless reader (IUC150B), an iSELF keyboard (IUP250), a barcode/QR Code reader, an NFC reader/encoder, and a thermal printer. Our sales application can be customised with your colours and products and is easy to set up. We can also interface with your cash register to avoid double management.

Technical specifications

What size is this product available in?

This product is available in :

PCAP technology: 32", 43".

Is this product customisable?

Our Touch totems are partially or completely customisable:

  • Stickering according to a logo, a graphic charter
  • Covering: leather, wood, carbon, gloss, marble, gold leaf, silver, etc.
  • Laser inlay & LED backlight
  • LED banner
  • Change of the initial design and adjustment

An iCASH totem can be delivered in the RAL colour of your choice (EPOXY paint) with a matt or gloss finish.

What is the operating system of the terminal?

The standard OS used is Windows 10 Professional.

Where is IT?

This totem is equipped with an integrated PC. Here it is located in the middle of the totem.

This is the standard configuration:

  • Core i7
  • 8GB RAM
  • 128GB SSD
  • HD Graphics 5000
  • Windows 10 Pro-64-bit

You can upgrade or change this configuration.

Can I plug in a USB stick to bring in files?

The iCASH totem is equipped with all the latest connections:

  • WIFI
  • USB 3.0
  • HDMI
  • RFID reader
  • NFC Reader / Transmitter


It also features: Ethernet, USB 2.0, DVI, VGA

What is the screen resolution?

The touchscreen totem is available in Full HD.

How can I integrate the totem into my sales area?

You can integrate the totem in two ways:

  • Split on the ground: via concrete splits, 4 holes are provided in the base of the totem pole to allow this fixing. A central opening in the base allows the power and network cables to pass through the floor.
  • Hanging on the wall: via concrete splits, 4 holes are provided in the structure of the upper part of the totem to fix it to the wall. The lower part is, of course, detachable. A part of the back of the structure can be detached to leave a way for cables.
Is this payment totem secure?

The totem is made of a steel structure of 3 to 5 mm thickness. Security locks protect the 2 access doors to the computer and the integrated elements.



What are the integrated payment elements?



The totem integrates INGENICO payment elements from the iSELF range:

  • TPE IUP250 ISELF KEYBOARD
  • TPE IUR250 ISELF CARD READER
  • IU150B NON-CONTACT TARGET
Is the application provided?

The iCASH touchscreen totem is equipped with an optional sales application. This application, developed by ELECOM, is fully customisable and can be adapted to all your needs. Do not hesitate to submit your requests!

Totem tactile iCASH 4k de paiement digital

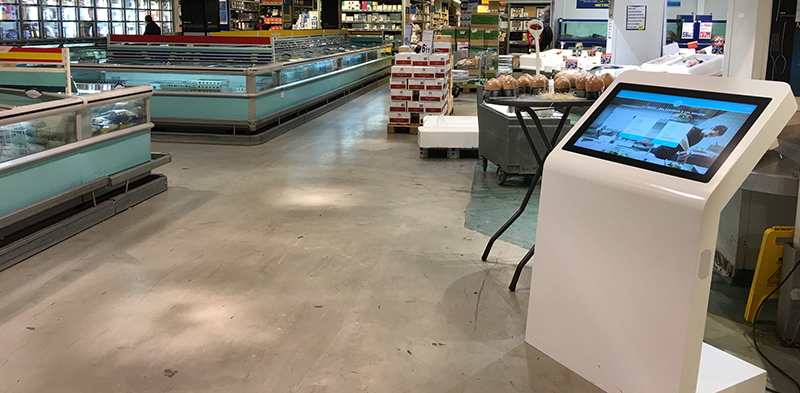

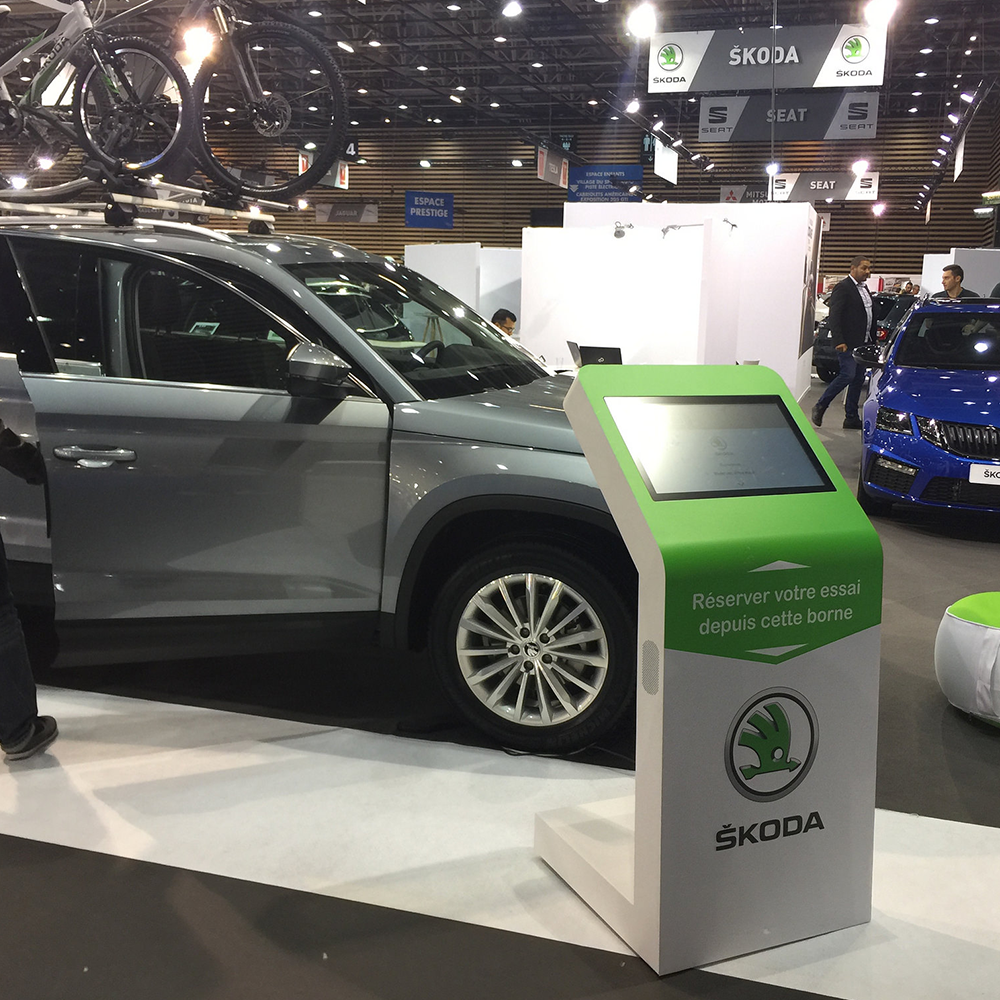

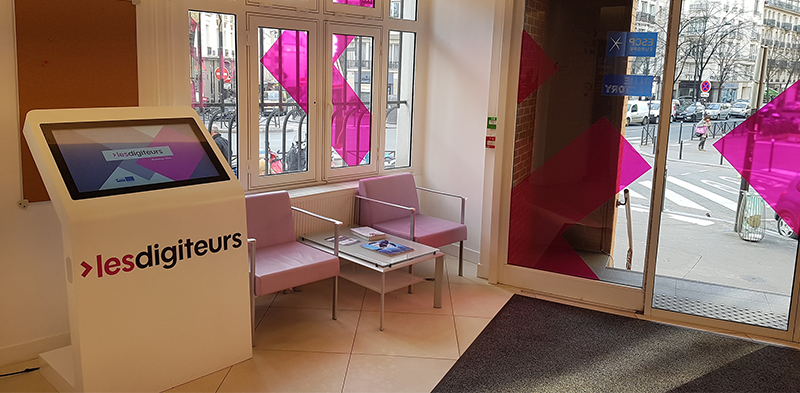

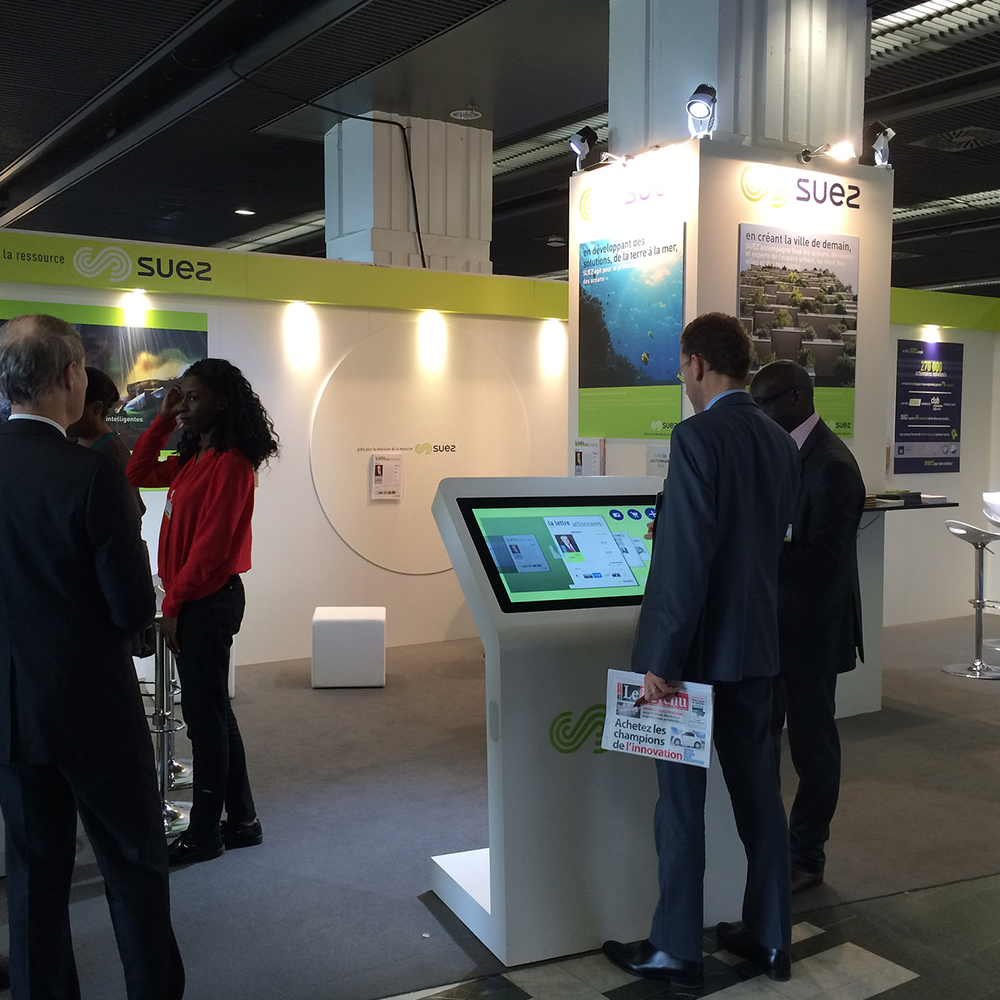

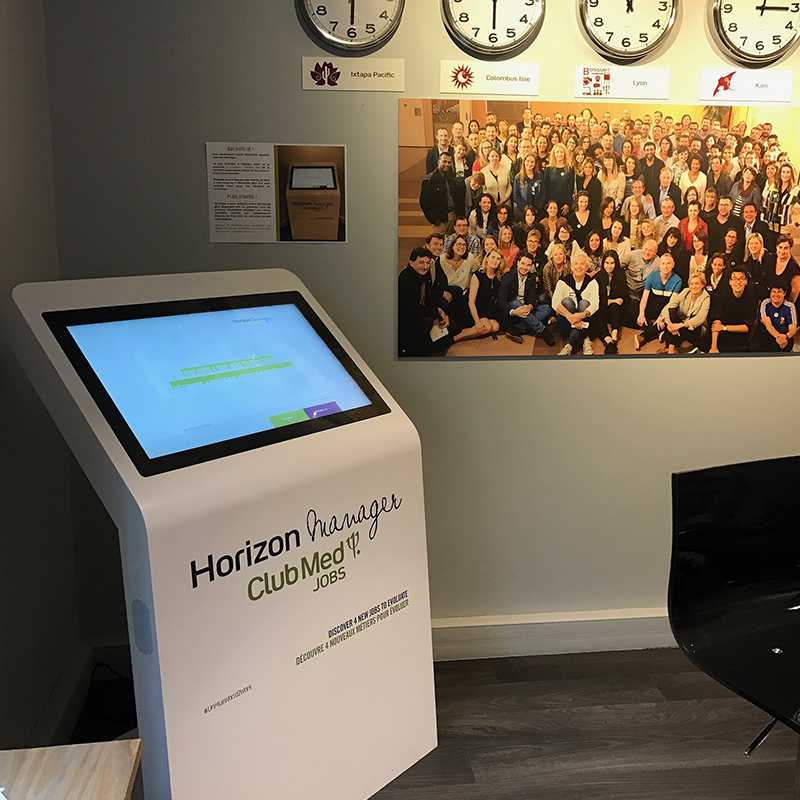

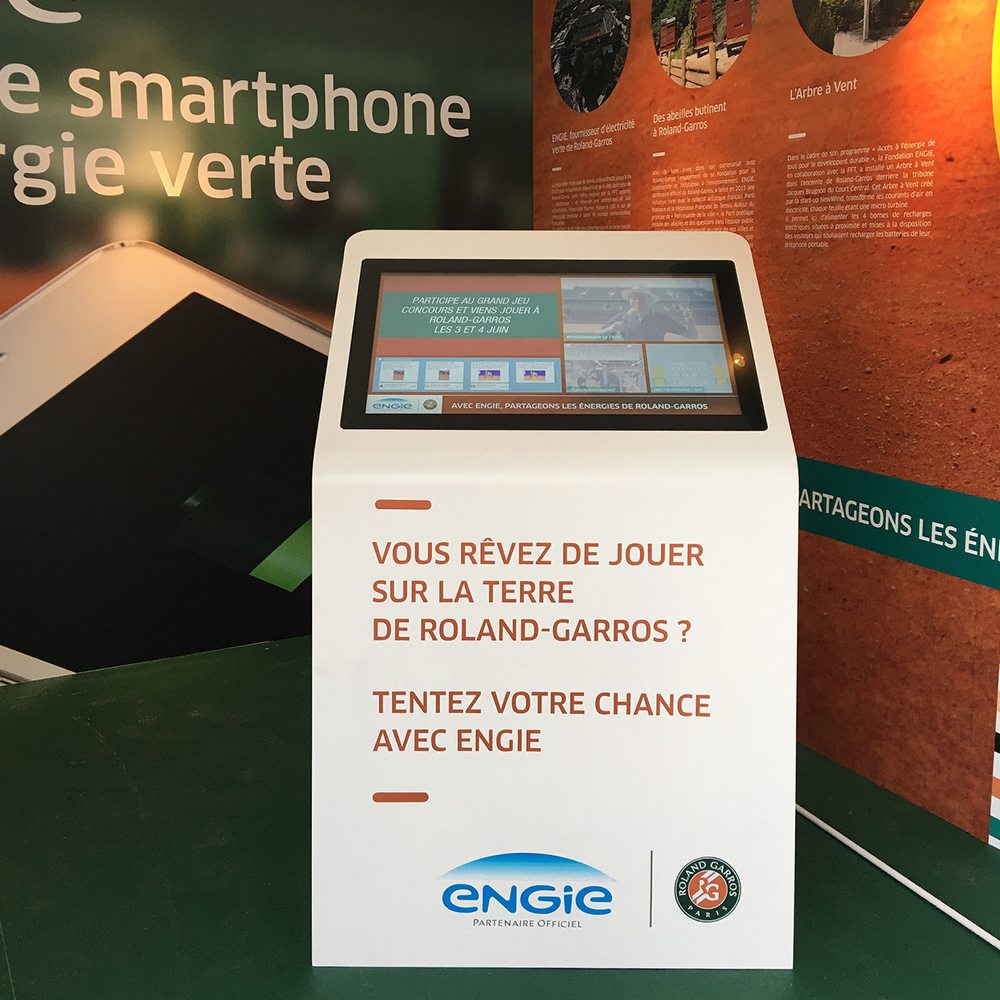

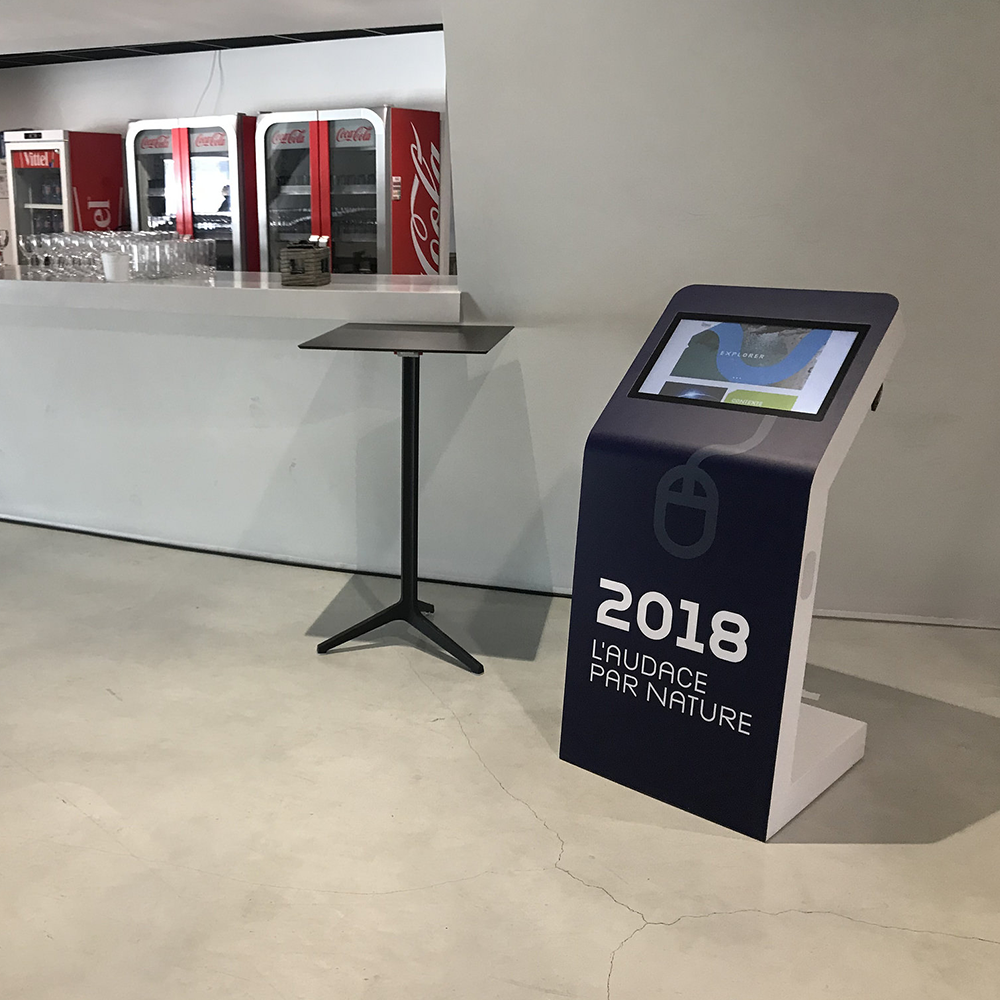

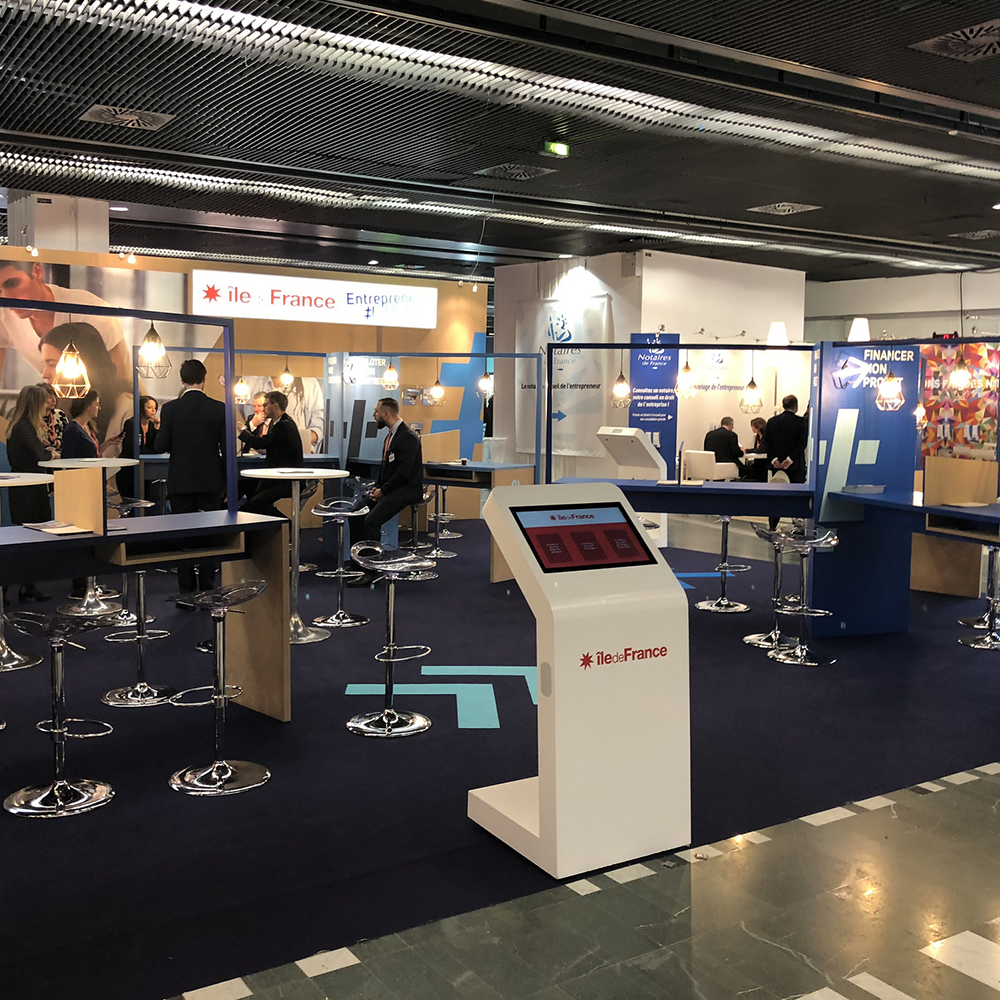

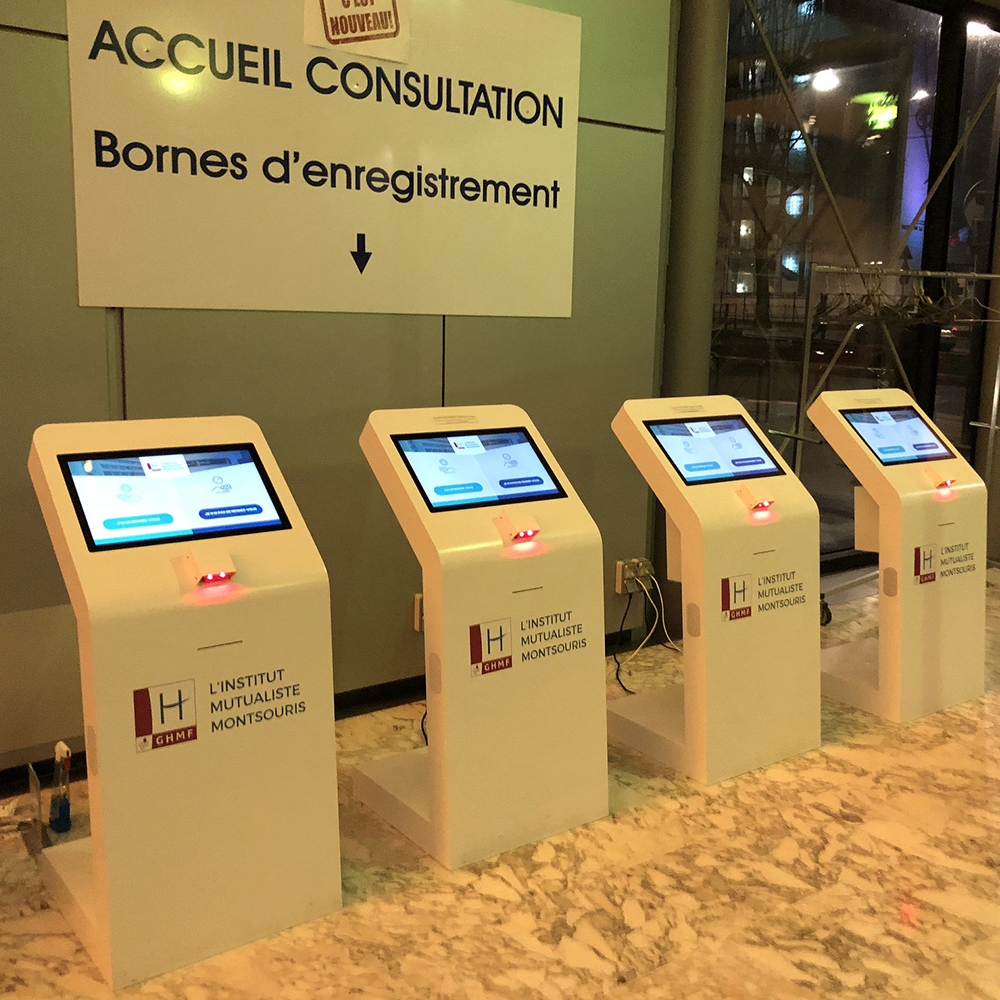

Portfolio
