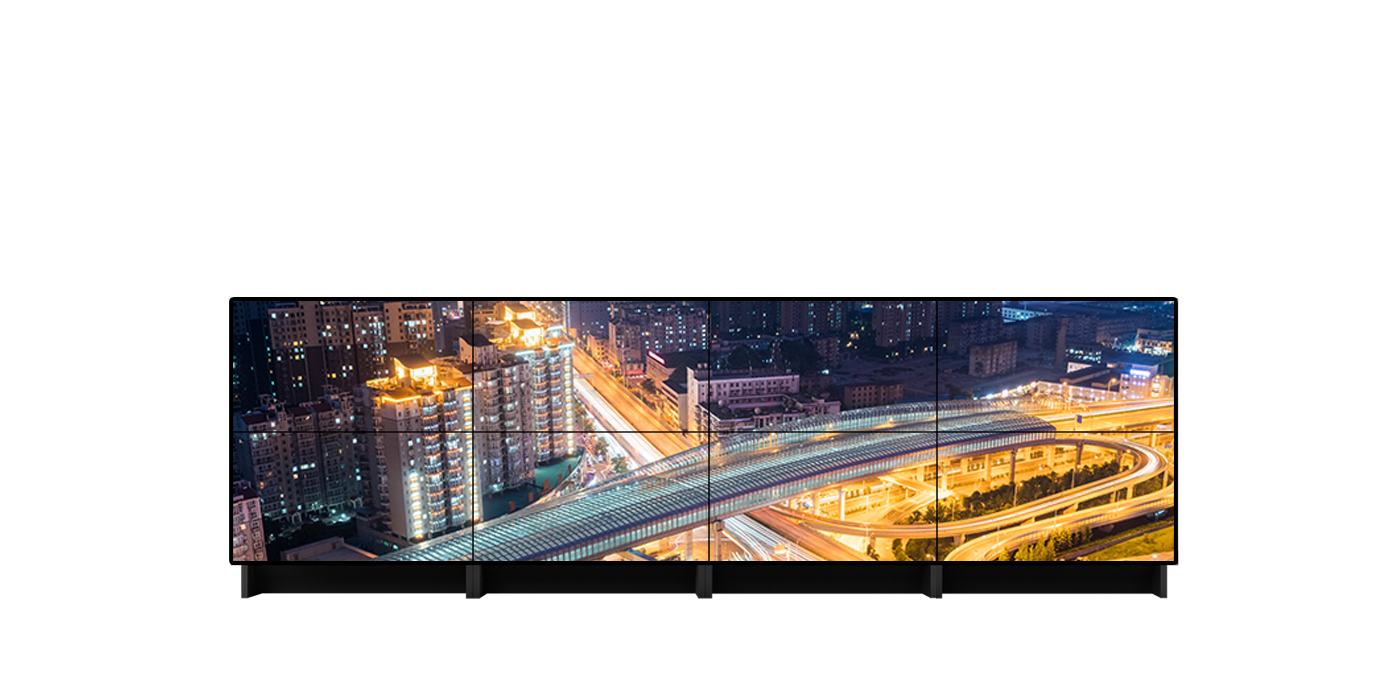

Touchscreen wall 4×2

Mur d'images très grande taille 4K Ultra HD 4x2

The « WHAOU » effect guaranteed

Made to measure, the digital touch wall is multitouch: it can combine many points of interaction simultaneously and can thus accommodate several users. It is available in several colours and generates an Ultra HD resolution.

Caractéristiques technique

How does the touch wall work?

Unlike most solutions on the market, the technology used is infrared. Exactly the same as we use on some of our touchscreens. This means that the precision and reactivity are still there, despite the large size covered.

This infrared frame is combined with SECURIT glass to ensure that the monitors used are durable and that the surface is flat and pleasant to the touch for users.

We can integrate it directly on a joinery for an ephemeral event or bring a self-supporting solution which integrates the whole. The latter will soon be available in 2x2 ratio and in September in 3x3 ratio. Its steel structure will be fully customisable to fit your event.

In what size is this solution available?

Almost all sizes and ratios are possible! The basic size of the "video wall" monitors is 46" and 55", the so-called thin-edge monitors.

The standards are (as they retain the ratio of a normal 16:9 screen) :

  • 2x2 format
  • 3x3 format

Non-standard and trendy ratios are :

  • 1x3 format
  • 3x1 format
  • 3x2 format
  • 4x2 format
  • 5x2 format
  • 4x3 format

All ratios are possible, we create and adapt the structure and technology to your atmosphere and your desire.

Is this solution customisable?

The structure of the video wall is fully customisable:

  • Stickering according to a logo, a graphic charter
  • Covering: leather, wood, carbon, gloss, marble, gold leaf, silver, etc.
  • Laser inlay & LED backlight
  • LED banner
  • Change of the initial design and adjustment

The structure can be delivered in the RAL colour of your choice (EPOXY paint) in matt or gloss finish.

What is the operating system of the terminal?

The basic OS used is Windows 10 Professional.

But the kiosk can, in fact, be configured to run on Mac OSX, Linux or Android.

Where is IT?

IT is integrated into the structure of the wall.

The basic configuration is as follows:

  • Core i7
  • 8GB RAM
  • 128GB SSD
  • NVidia GTX 1070
  • Windows 10 Pro 64-bit

You can upgrade or change this configuration.

Depending on the application, we advise you on the evolution of the internal machine:

  • Processor modification
  • Increased RAM
  • Changing the graphics card

IMPORTANT: It is possible to generate very high resolution for an amazing result. For this purpose, we prepare workstations or even rendering servers with suitable video cards and adapt the cabling accordingly. For example, on a 4x2 wall, we obtain a resolution of 7680 x 2160 pixels.

What is the resolution of the set?

On standard walls (2x2 or 3x3), the native resolution is FULL HD.

On standard (more recent) thin-edge walls, the native resolution is 4K. As mentioned in the previous spec, it is possible to generate very high resolutions in any ratio by adapting the computing.
