OUTDOOR Touchscreen Totem

Totem tactile Outdoor pour extérieur résistant IPV7

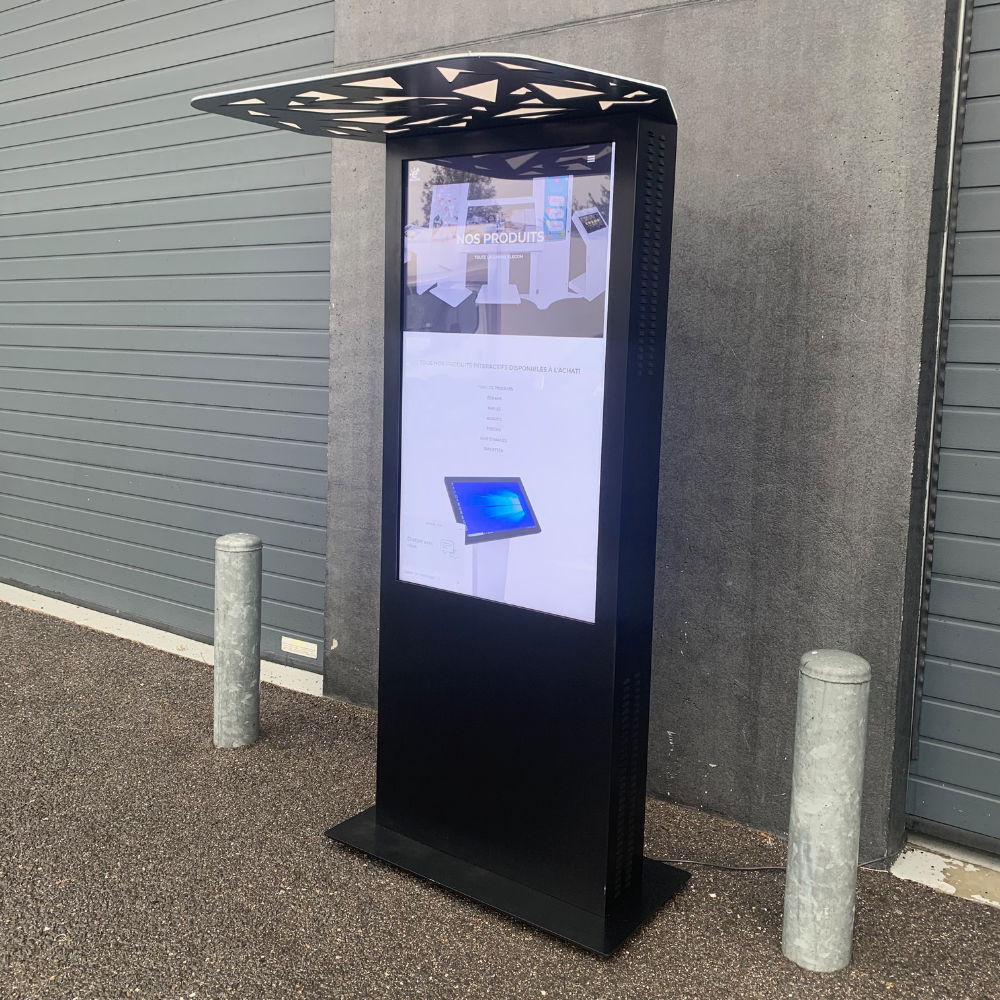

The IP65 touchscreen totem

With Infrared or Projected Capacitive technology, and a high brightness screen (2500 cd/m2), it has a floor fixing system, integrated in the body of the totem for more aestheticism. With a very thin structure, it can be easily integrated anywhere.

Technical specifications

What size is this product available in?

This product is available in :

Infrared technology: 24", 32", 46", 55", 75

OCAP technology: On request

Is this product customisable?

Our interactive totems are partially or completely customisable:

  • Stickering according to a logo, a graphic charter
  • Covering: leather, wood, carbon, gloss, marble, gold leaf, silver, etc.
  • Laser inlay & LED backlight
  • LED banner

Change of the initial design and adjustment

An OUTDOOR touchscreen totem can be delivered in the RAL colour of your choice (EPOXY paint) in matt or gloss finish.

A polyzync treatment is also carried out to prevent any type of corrosion.

What is the operating system of the terminal?

The basic OS used is Windows 10 Professional.

But the kiosk can, in fact, be configured to run on Mac OSX, Linux or Android.

Where is IT?

Our totems are equipped with a PC integrated in the body of the stand.

Here is the basic configuration:

  • Core i7
  • 8GB RAM
  • 128GB SSD
  • HD Graphics 5000
  • Windows 10 Pro 64-bit

You can upgrade or change this configuration.

Depending on the application, we advise you on the evolution of the internal machine:

  • Processor modification
  • Increased RAM
  • Changing the graphics card
Can I plug in a USB stick to bring in files?

The OUTDOOR Touchscreen Totem is equipped with all the latest connections:

  • WIFI
  • USB 3.0
  • HDMI
  • RFID reader
  • NFC Reader / Transmitter

It also features: Ethernet, USB 2.0, DVI, VGA

What is the screen resolution?

The touchscreen totem is available in the 2 existing resolutions:

  • Full HD
  • 4K

We adapt this criterion to your needs.

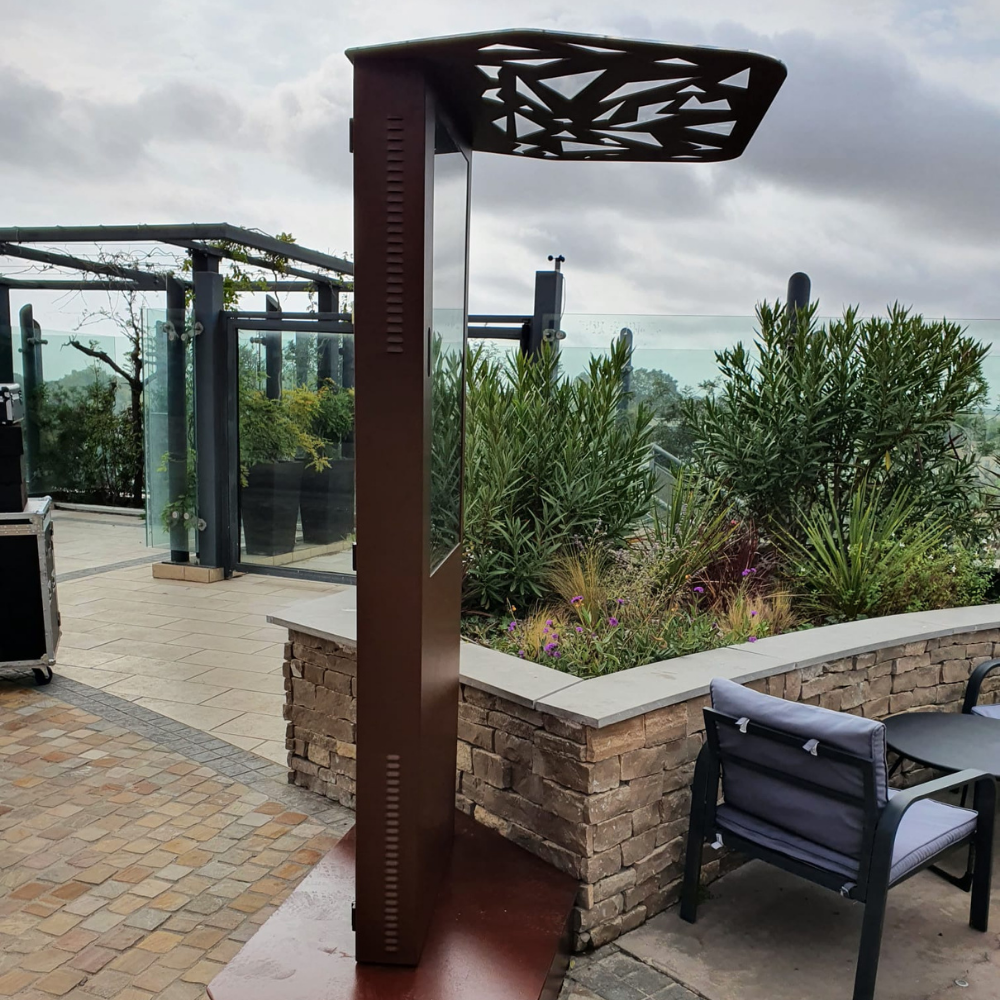

Totem tactile Outdoor pour extérieur résistant IPV7 intérieur de dos
